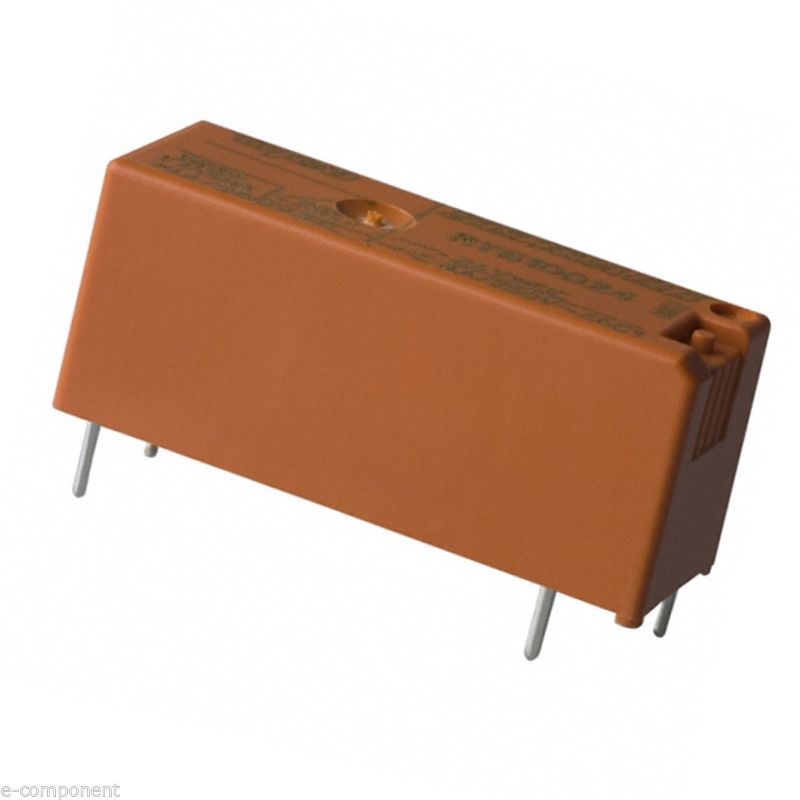

SCHRACK RY610012 Relay PCB, 12VDC 8A 250Vac

Codice prodotto: RY610012

DISPONIBILITÀ: In Stock

Quantità disponibile: 8

Prezzo: 16,50€

SCHRACK RY610012 Relay PCB, 12VDC 8A 250Vac


Technical/Catalog Information:

RELE' RY610012 Bobina 12Vdc - 8A 250Vac da circuito stampato


  • RELAY, PCB, 12VDC
  • Relay Type: General Purpose
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 240V
  • Coil Resistance: 620ohm
  • Contact Configuration: SPCO
  • Coil Type: DC, Monostable
  • Coil Current: 19.3mA
  • Nom Operating Power: 230mW
  • Relay Mounting: Through Hole
  • External Height: 28.5mm
  • External Width: 10.1mm
  • External Depth: 12mm
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 8A
  • Contact Current Rating: 8A
  • Contact Material: Silver Cadmium Oxide
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • DC Coil Power: 220mW
  • External Length / Height: 28.5mm
  • Mounting Type: PCB
  • No. of Poles: 1
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • PCB Hole Diameter: 1.3mm
  • Power Rating: 220W
  • Release Time: 3ms
  • Series: RY3
  • Switch Current Max: 30A
  • Switching Current Max: 30A
  • Switching Power Max: 2000VA




DATASHEET LINK: VAI QUI
