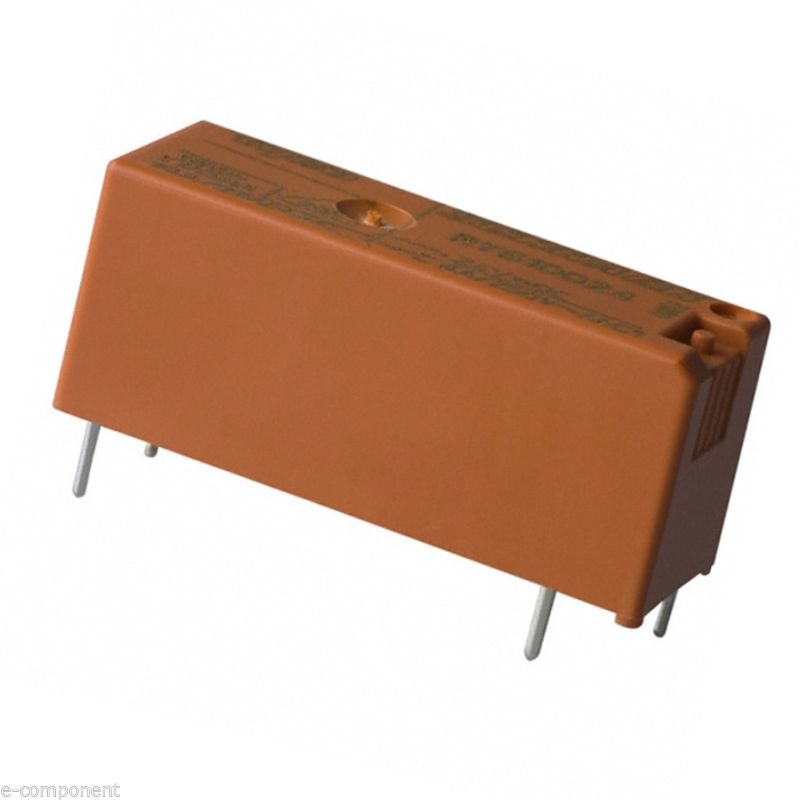

SCHRACK RY510012 Relay PCB, 12VDC 8A 250Vac
Codice prodotto: F003302 RY510012
DISPONIBILITÀ: In Stock
Quantità disponibile: 5
Prezzo: 12,00€QUANTITÀ:
SCHRACK RY510012 Relay PCB, 12VDC 8A 250Vac
Technical/Catalog Information:RELE' RY510012 Bobina 12Vdc - 8A 250Vac da circuito stampato- RELAY, PCB, 12VDC
- Relay Type: General Purpose
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 240V
- Coil Resistance: 620ohm
- Contact Configuration: SPCO
- Coil Type: DC, Monostable
- Coil Current: 19.3mA
- Nom Operating Power: 230mW
- Relay Mounting: Through Hole
- External Height: 28.5mm
- External Width: 10.1mm
- External Depth: 12mm
- Contact Current AC Max: 8A
- Contact Current DC Max: 8A
- Contact Current Rating: 8A
- Contact Material: Silver Cadmium Oxide
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- DC Coil Power: 220mW
- External Length / Height: 28.5mm
- Mounting Type: PCB
- No. of Poles: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- PCB Hole Diameter: 1.3mm
- Power Rating: 220W
- Release Time: 3ms
- Series: RY3
- Switch Current Max: 30A
- Switching Current Max: 30A
- Switching Power Max: 2000VA
DATASHEET LINK: VAI QUI
