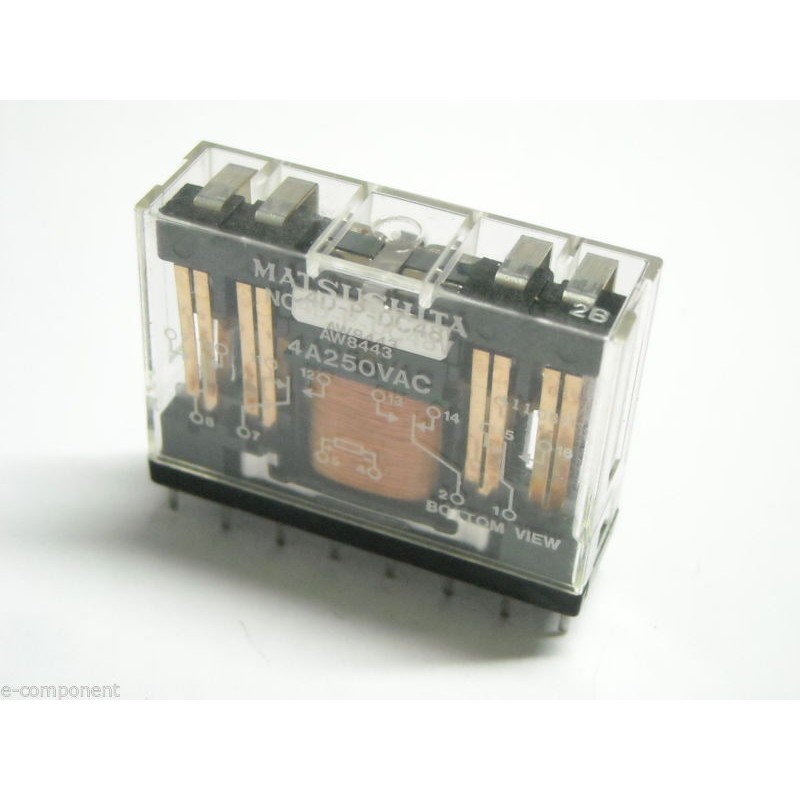

RELE' MATSUSHITA NC4D-P-DC48V AW8443 Bobina 48Vdc da circuito stampato

Codice prodotto: LTSR014

DISPONIBILITÀ: In Stock

Quantità disponibile: 1

Prezzo: 20,00€

QUANTITÀ:

Technical/Catalog Information:

RELE' MATSUSHITA NC4D-P-DC48V AW8443 Bobina 48Vdc da circuito stampato

Item	Specifications
Product Name	NC Relays
Product Number	NC4D-P-DC48V
Part Number	AW8443
Features	Flatpack and vertical type.Dil terminal.Bifurcated contacts.
Relay shape	Slim
Contact arrangement	4c
Foreign standards	UL/CSA, VDE
Coil voltage	48V DC
Terminal shape	PCB
Protective construction	Dust cover
Nominal Operating Power	720mW
Operating function	Single side stable
Pick-up voltage	80%V or less of nominal voltage (Initial)
Drop-out voltage	10%V or more of nominal voltage (Initial)
Max. switching capacity (current)	4A AC/5A DC
Load Voltage(Voltage)	250V AC/30V DC
Minimum(For reference)	100microA 1V DC
Contact material	AgNi + Au clad
Mechanical life(Min.operation)	5x10^7
Electrical life	1x10^5
Breakdown voltage (Contact-Contact)(Initial)	1000Vrms
Breakdown voltage (Contact-Coil)(Initial)	2000Vrms
Ambient temperature	-40deg to +55deg
