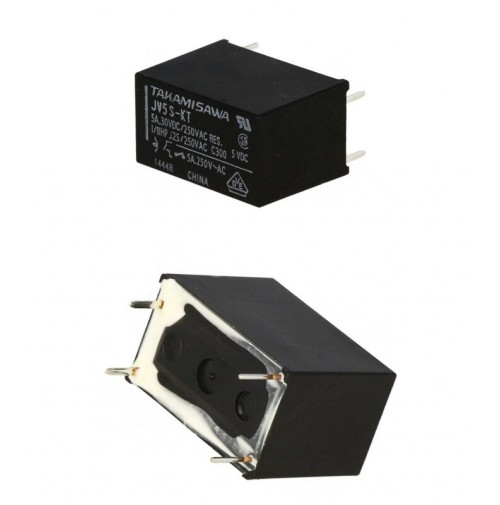

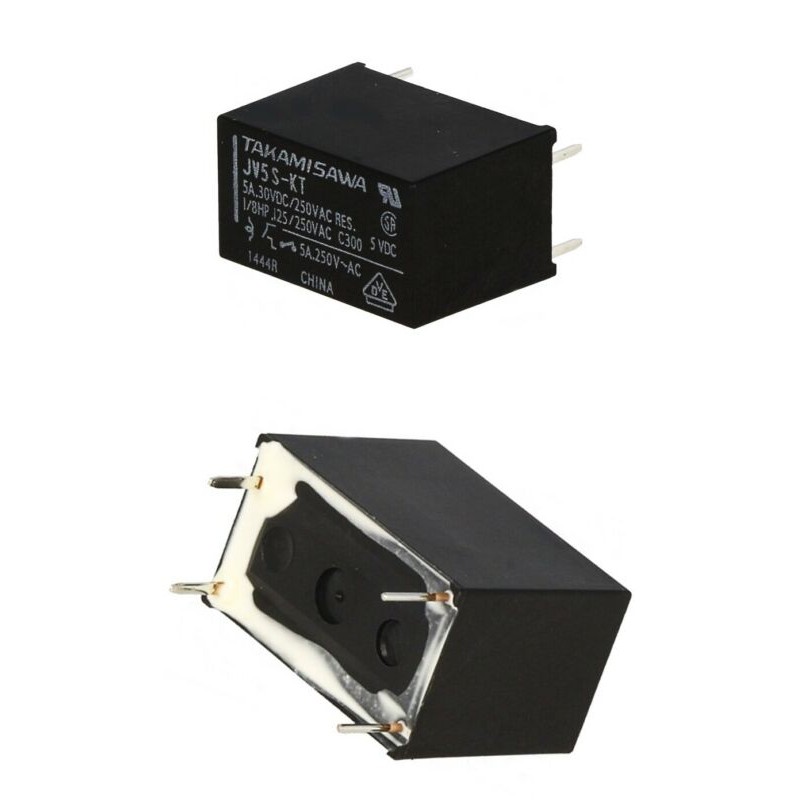

RELE' JV-5S-KT Bobina 5Vdc 5A/250VAC 5A/30VDC SPST-NO da circuito stampato

Codice prodotto: JV-5S-KT

DISPONIBILITÀ: In Stock

Quantità disponibile: 5

Prezzo: 3,80€

QUANTITÀ:

Technical/Catalog Information:

RELE' JV-5S-KT Bobina 5Vdc 5A/250VAC 5A/30VDC SPST-NO da circuito stampato

Manufacturer	FUJITSU-TAKAMISAWA
Type of relay	electromagnetic
Contacts configuration	SPST-NO
Rated coil voltage	5V DC
AC contacts rating @R (at resistance load)	5A / 250VAC
DC contacts rating @R (at resistance load)	5A / 30VDC
Contact current max.	5A
Switched voltage	max 150V DC, max 250V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	125Ω
Coil voltage min.	3.75VDC
Operate time	8ms
Body dimensions	17.5 x 10 x 12.5mm
Release time	4ms
Coil power consumption	200mW
Operating temperature	-40...70°C
Relay series	JV
Contact resistance	70mΩ
Contact material	AgSnO₂
