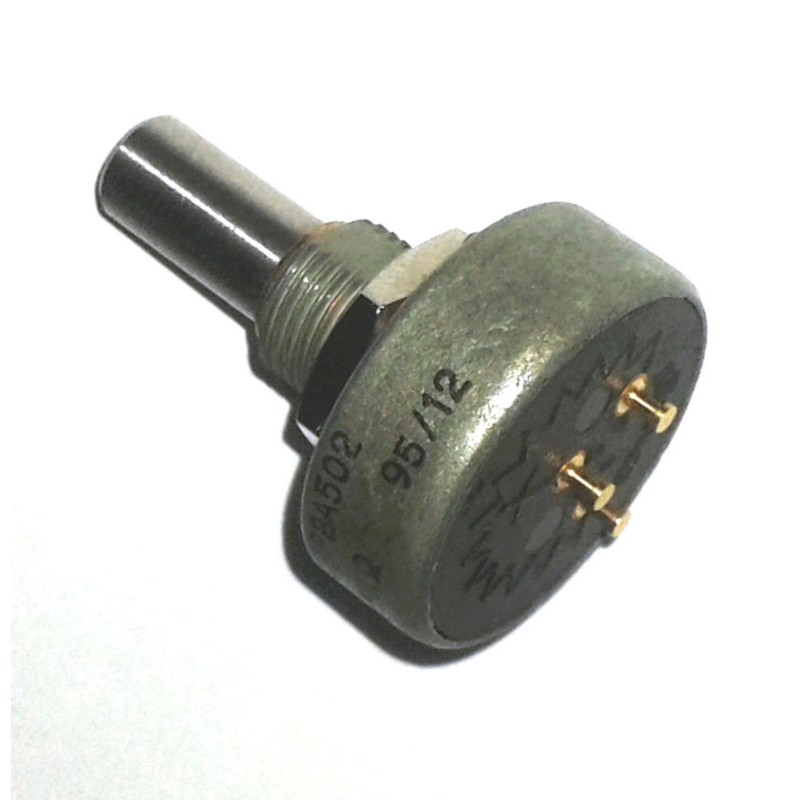

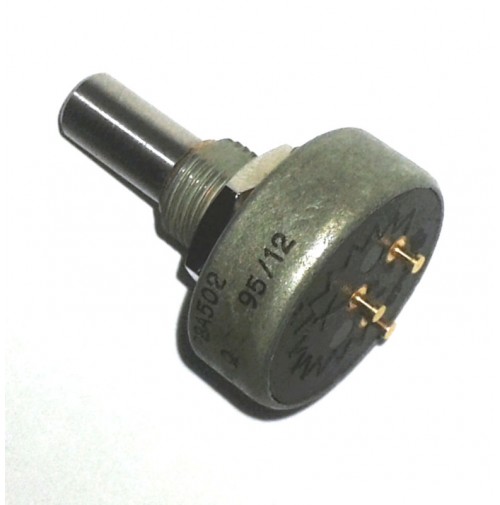

Precision Rotative Transducers 300mW 5K VISHAY ECS78PBA5K
Codice prodotto: F003222 ECS78PBA5K Prec
DISPONIBILITÀ: In Stock
Quantità disponibile: 6
Prezzo: 48,50€QUANTITÀ:Tags: F003222Precision Rotative Transducers 300mW 5K 1% VISHAY
ECS78PBA5KF003222
Specifiche:
Theoretical Electrical Angle (TEA) (AEA) - 3°
Independent Linearity (over TEA) A ≤ ± 1 %
Actual Electrical Angle (AEA) 340° ± 5°
Ohmic Values (RT) 1 - 2 - 5 - 10 kΩ (on request other values) 1 - 2 - 5 - 10 kΩ
Ohmic Value Tolerances at 20 °C Standard: ± 20 %/special: ± 10 % ± 20 %
Output Smoothness 0.1 %
Maximum Power Rating at 70 °C 0.3 W
Wiper Current Recommended: a few μA - 1 mA max. (continuous)
Tap (Current or Voltage) 1: On request NA
Resistance Load on Wiper ≥ 1000 x RT
End Voltage ≤ 0.5 %DC
Insulation Resistance ≥ 1000 MΩ, 500 VDC
Life (Cycles) 5.000.000
Temperature Range - 55 °C to + 125 °C
Climatic Category 55/125/04
Speed Rotation (RPM) 150
Sine Vibration on 3 Axes 15 g from 10 Hz to 2000 Hz
Mechanical Shocks on 3 Axes 50 g - 11 ms - half sine
Mechanical Angle (MA) 360° continuous / On Request: Stops 342° ± 5°
Mounting Type Servo Bushing Servo Bushing Shaft Guiding Sleeve bearings / Shaft Stainless steel
Option: Flat or Screw Driver Slot On Shaft On request NA
Termination Turrets Wiper Precious metal multi-finger contact
Starting Torque (N.cm) ≤ 0.5
Torque on Stops (N.cm) ≥ 20
Weight (g) Bushing 17 g ± 3 g Servo 12 g ± 3 g
Dielectric Strength ≥ 500 VRMS, 50 HzScrivi una recensione
