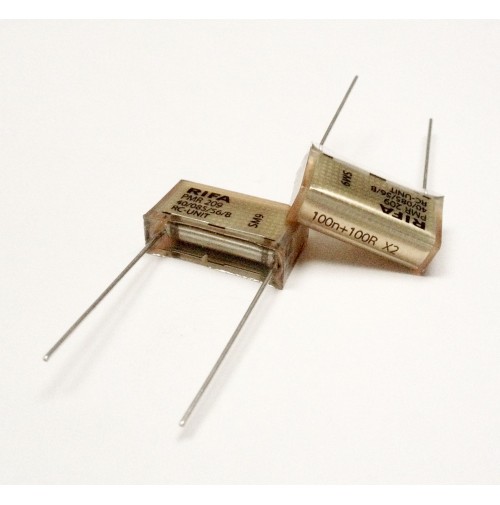

RIFA PMR 209 AB 40/085/56/B RC-UNIT 250VAC SH CAPACITOR 100n+100R X2

RIFA PMR 209 AB 40/085/56/B RC-UNIT 250VAC SH CAPACITOR + RESISTOR 100n+100R X2 (1 Pezzo)

 F003220

Caratteristiche:

cod. RIFA PMR 209 AB RC-UNIT- 100 NF / 100 OHM

7,6X14X24mm.

• Rated voltage: 250 VAC/250 VDC, 50/60 Hz

• Capacitance: 0.1 µF (100nF)

• Capacitance tolerance: ±20% • Resistance: 100 Ω

• Resistance tolerance: ±30% • Lead spacing: 20.3 mm

• Climatic category: 40/085/56/B, IEC 60068–1

• Tape and reel packaging in accordance with IEC 60286–2

• RoHS Compliant and lead-free terminations

• Operating temperature range of -40˚C to +85˚C

• Excellent self-healing properties which ensure long life even when subjected to frequent over voltages

• Good resistance to ionization due to impregnated paper dielectric

R/C RESISTENZA SERIE CONDENSATORE PMR 209 AB RC-UNIT- 100 NF / 100 OHM - Rad. 250VDC / 250VAC DIM: 7,6x14x24mm - (RIFA) - neutro
