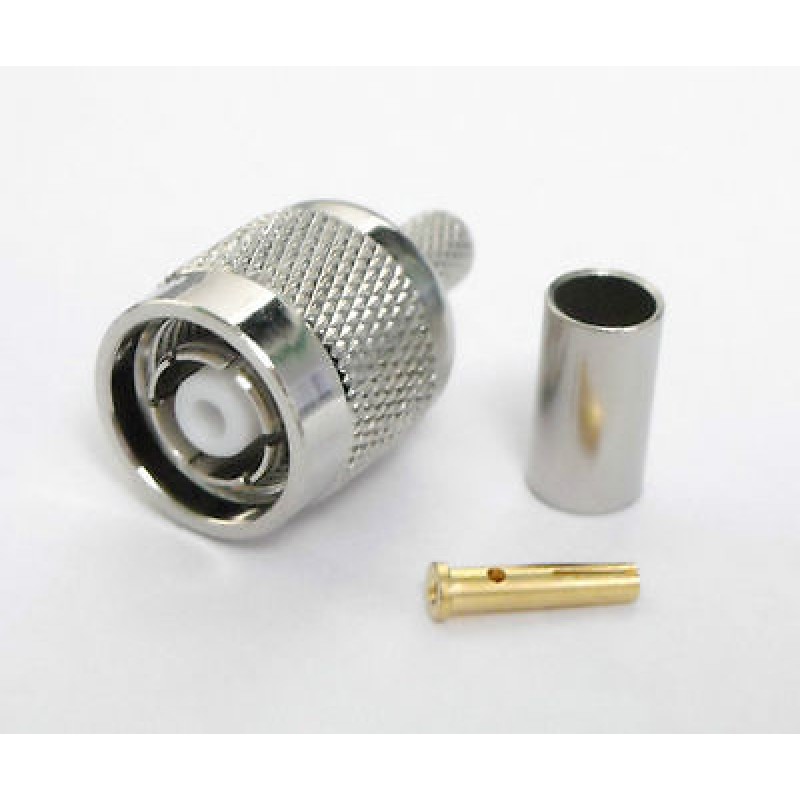

Connettore RP-TNC crimp per cavo RG58 / XT2400

RP-TNC Crimp connector

RP-TNC Crimp connector Electrical performance from DC to 4 GHz with flexible cable RG58

RP-TNC Crimp connector feature screw-type coupling. Semi-Rigid cabling XT2400 extends the frequency range of the device up 5 GHz.

RP-TNC Crimp connector offer broadband performance with low reflections and constant 50 ohm impedance.

These properties, along with minimum attenuation and low VSWR have made the RP-TNC Crimp connector in the microwave community.

Materials:

shell: brass goldplated
inner conductor: (beryllium or tin brass goldplated)
insulator: PTFE
crimping suite: copper alloy (nicked or goldplated)
