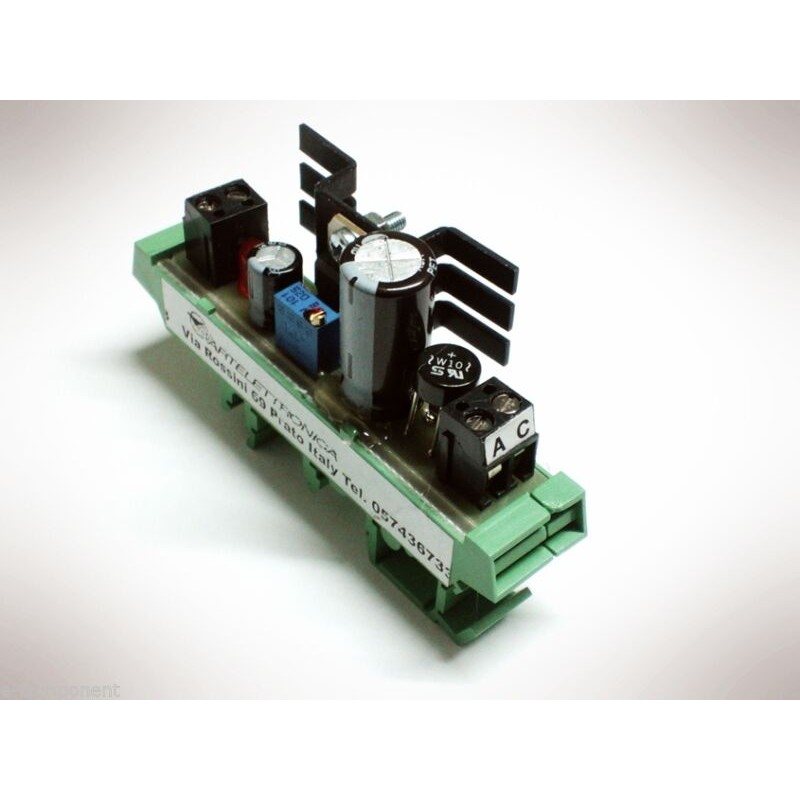

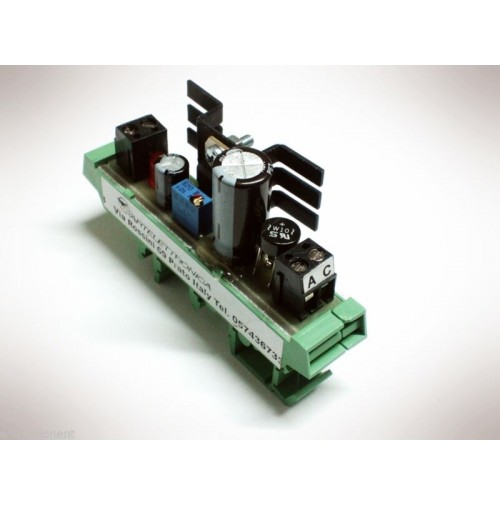

Alimentatore Lineare Stabilizzato 10Vdc 250mA

Codice prodotto: F002721

DISPONIBILITÀ: In Stock

Quantità disponibile: 4

Prezzo: 25,00€
Power Supply AL24/250/10 - Single Output Linear Power Supply for Extended Range Applications



- 3W Continuous Linear Power Supply
- short circuit protection
- Overload output protection

Technical specifications

- Vac input Voltage: 10 to 24V
- Vac input Frequency: 50 ~ 60 Hz
- Iout Max: 300mA
- Iout Standard: 250mA
- Vdc Output adjustable: 10V  +/-3%~5%
- Onboard Led on
- Vdc Output Adjstable Trimmer Vdc-Out
- Vripple (12Vdc-out/200mA): 0.3mV
- Operative Temperature: -20/+60 °C
- weight: 32gr
- Dimension: 86mm(H) 28mm (D) 52mm (W)



The AL24/250/10 is a 3W universal input AC/DC external Class I power supply. The AL24/250/10 represents the next generation of low cost power supplies, suitable for a host of worldwide low power external power applications. The AL24/250/10 provides up to 3W under natural convection cooling. Standard features include universal DC/AC input and short circuit protection.

Attenzione!

il modulo AL24/250/10 viene dato senza il trasformatore e quindi necessita di trasformatore esterno.


English:

Attention!

the module AL24/250/10 is given without the transformer.
