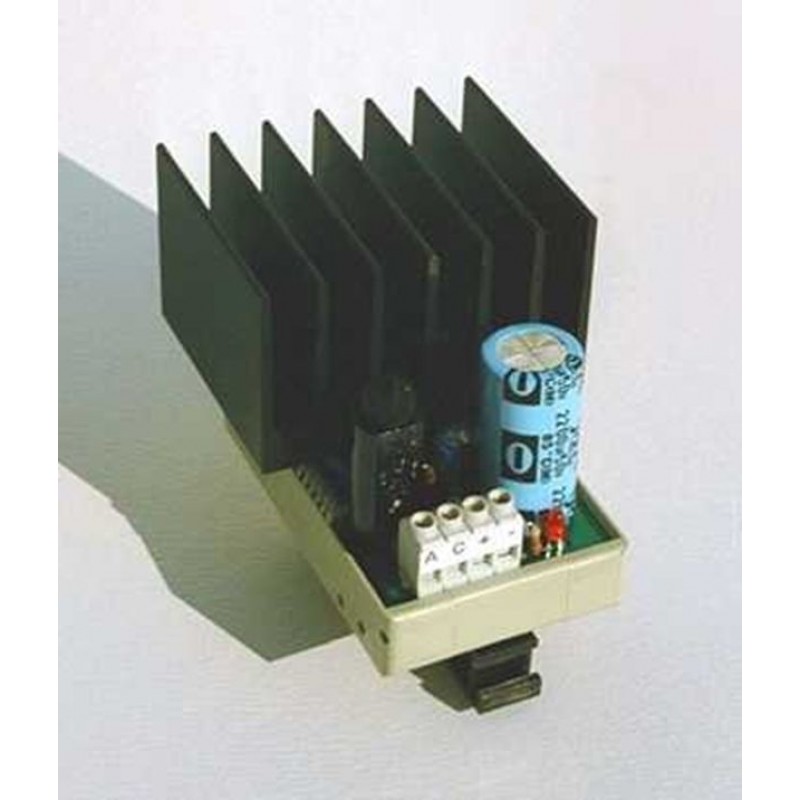

Alimentatore Lineare Regolabile da 0-24Vdc 2 Ampere 48W

Codice prodotto: E000103 AL242 A

DISPONIBILITÀ: In Stock

Quantità disponibile: 6

Prezzo: 65,00€
  • Per acquisti superiori alle 3 unità, paghi 60,00€ a pezzo
  • Per acquisti superiori alle 5 unità, paghi 55,00€ a pezzo
AL242 - Single Output Linear Power Supply for Extended Range Applications



- 48W Continuous Linear Power Supply
- Diode Bridge Fuse Protection
- short circuit protection
- Overload output protection
- EN55022 Conducted Emission level A
- EN55022 Radiated Emission level A
- CE European safety approvals
- 2 Year Warranty

Technical specifications

- Vac input Voltage: 0 to 30V
- Vac input Frequency: 50 ~ 60 Hz
- Iout Max: 2,25A
- Iout Standard: 2A
- Vdc Output adjustable: 1.25V to 25.2V
- Onboard Led on
- Vdc Output Adjstable Trimmer Vdc-Out
- Vripple at full charge: 2.26mV
- Operative Temperature: -20/+60 °C
- weight: 240gr
- Dimension: 78mm(H) 90mm (D) 66mm (W)



The AL242 is a 48W universal input AC/DC external Class I power supply. The AL242 represents the next generation of low cost power supplies, suitable for a host of worldwide low power external power applications. The AL242 provides up to 48W under natural convection cooling. Standard features include universal AC input and short circuit protection and meets EN55022 level A for Radiated e Conducted emissions. The AL242 has several output voltages available fixed ranging from 1.25V to 25.2V


Attenzione!

il modulo AL242 viene dato senza il trasformatore e quindi necessita di trasformatore esterno di almeno 90VA 230V / 24V, o in alternativa una fonte esterna di 24Vac.

English:

Attention!

the module AL242 is given without the transformer and therefore needs at least 90VA external transformer 230V/24V, or alternatively an external source of 24Vac.


TRASFORMATORE 90VA PER AL242
